UP2 Trådlöst guide set

UP2 Portable UHF wireless System 2 channel

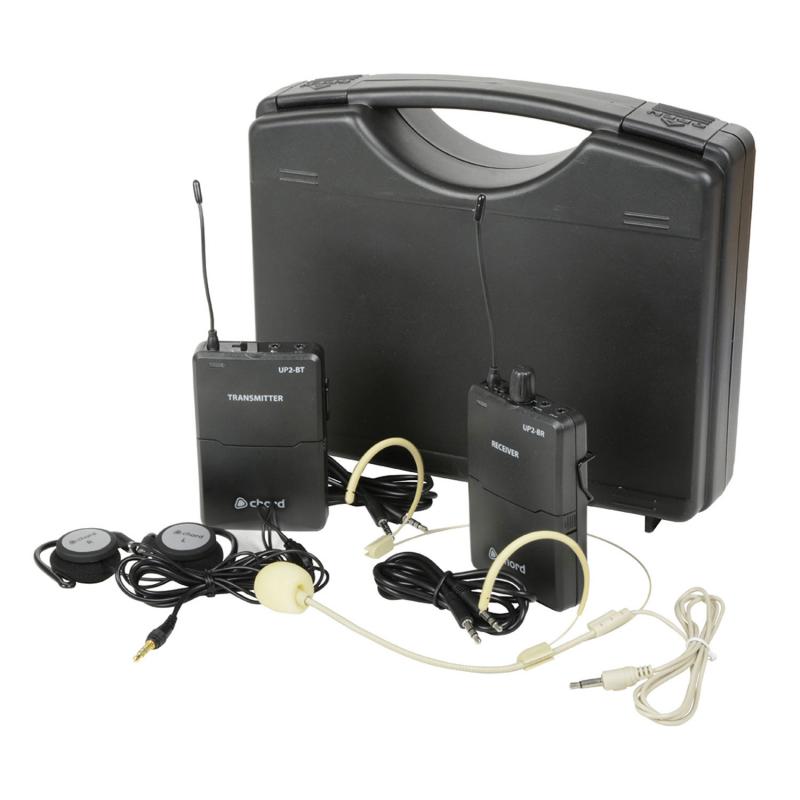

Portable UHF wireless microphone system with neckband mic and beltpack transmitter, supplied with a portable beltpack receiver and over-ear headphones. The receiver can be connected to any line input for regular wireless microphone operation or as a wireless link to an active speaker. Two selectable carrier frequencies give the option of 2 systems working independently in the same area or the ability to switch between 2 sets of listeners. Additionally, a hot-shoe adaptor is provided for mounting to a camera for broadcasts and video presentations. A super versatile wireless set that can also form part of a larger system when extended with additional transmitters and receivers (available separately).

• Complete transmitter & receiver set in ABS carry case
• Supplied with discreet neckband mic
• Supplied with over-ear headphones
• 2 switchable UHF carrier frequencies
• Supplied with hot-shoe adaptor for camera mounting

• Additional receivers (171.921UK) & transmitters (171.922UK) available
• Transmitter compatible with Chord neckband & lavalier microphones
• Receiver compatible with standard headphones
• Compatible with line level input & output

Specification

• Power supply4 x AA batteries (2 for transmitter, 2 for receiver)
• Carrier frequencies863.3MHz + 864.3MHz
• Transmitter : power?20mW
• Maximum range60m
• MicrophoneMiniature electret condenser
• Microphone : connector3.5mm mono jack
• Phantom power3V
• Frequency response40Hz - 15kHz

• Auxiliary input3.5mm stereo jack (transmitter)
• Audio output3.5mm stereo jack - headphone or line out (mono summed)
• Headphone : impedance?16 Ohms
• Headphone : power2 x 50mW @1kHz (THD 3%)
• REC output3.5mm 4-pole jack to smart phone / laptop
• Dimensions (packed)250 x 210 x 70mm
• Weight (per set)740g
