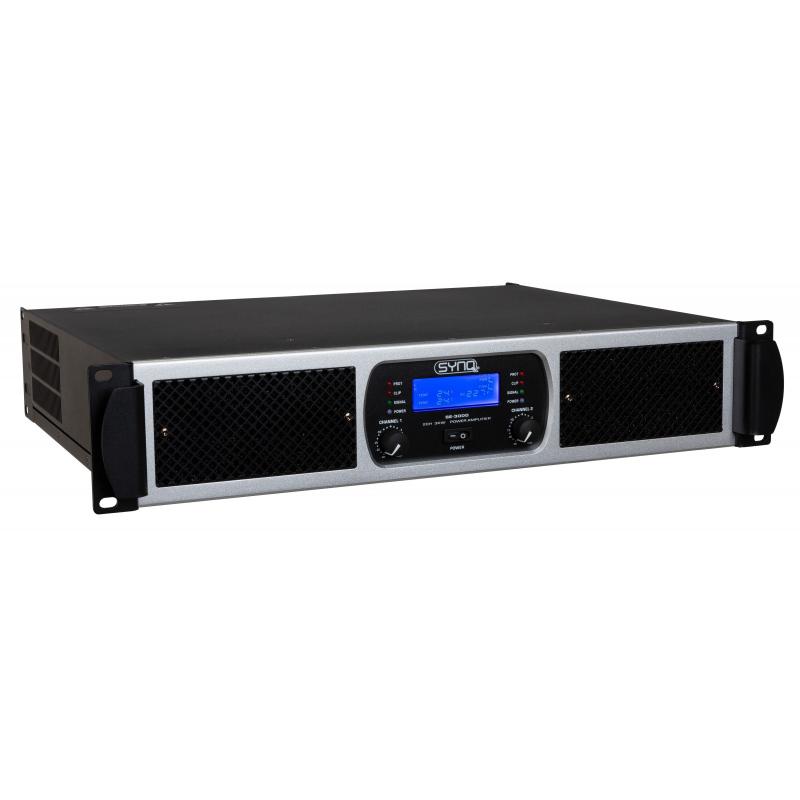

SE-3000

2 x 2000W RMS klass TD Slutsteg

• The SE-3000 power amplifier is unprecedented in terms of price / performance.
• The sophisticated design of this lightweight CLASS-TD amplifier ensures excellent and powerful low-frequency reproduction combined with crystal clear and delicately balanced high frequencies.
• Thanks to the big power reserve, excellent limiters and protections it can be used in all kinds of different applications such as discotheques, clubs, mobile audio, PA, rental, theater, …
• The extremely high efficiency, reduced power waste and very low heat dissipation are the main advantages of this compact amplifier!
• The 2U enclosure weighs only 10 kg, which makes it perfect for mobile applications!

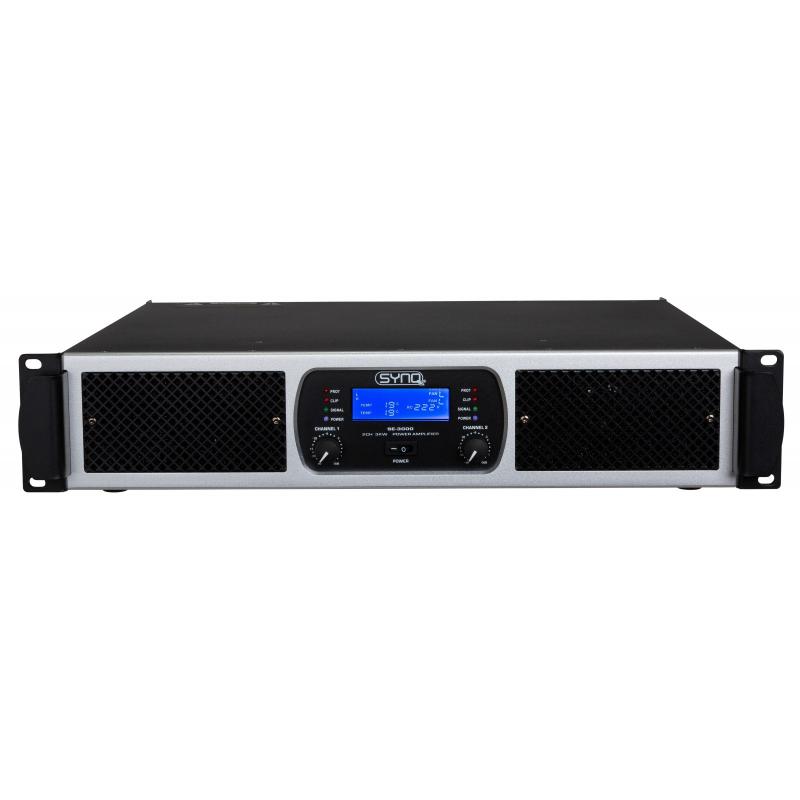

• The LCD-display shows: audio input level, mains voltage, working temperature and fan speed.
• Power output, stereo:
  • 2x 1000Wrms @ 8 Ω
  • 2x 1500Wrms @ 4 Ω
  • 2x 2000Wrms @ 2 Ω
• Power output, bridge:
  • 1x 3000Wrms @ 8 Ω
  • 1x 4000Wrms @ 4 Ω
• All the protections you can think of for professional use:
  • Inaudible signal + current limiter
  • overload protection
  • short circuit current protection
  • DC protection
  • thermal protection
  • AC/VHF protection
  • soft start
  • …
• Two FAN modes:
  • Silent mode: minimum fan noise for use in recording studio, theatre, …
  • Power mode: maximum cooling for use in rough conditions like discotheques, summer festivals, …
• 3 different working modes: stereo, bridge mode, mono mode (inputs linked)
• Input sensitivity: 0,75V / 1,0V / 1,5 V

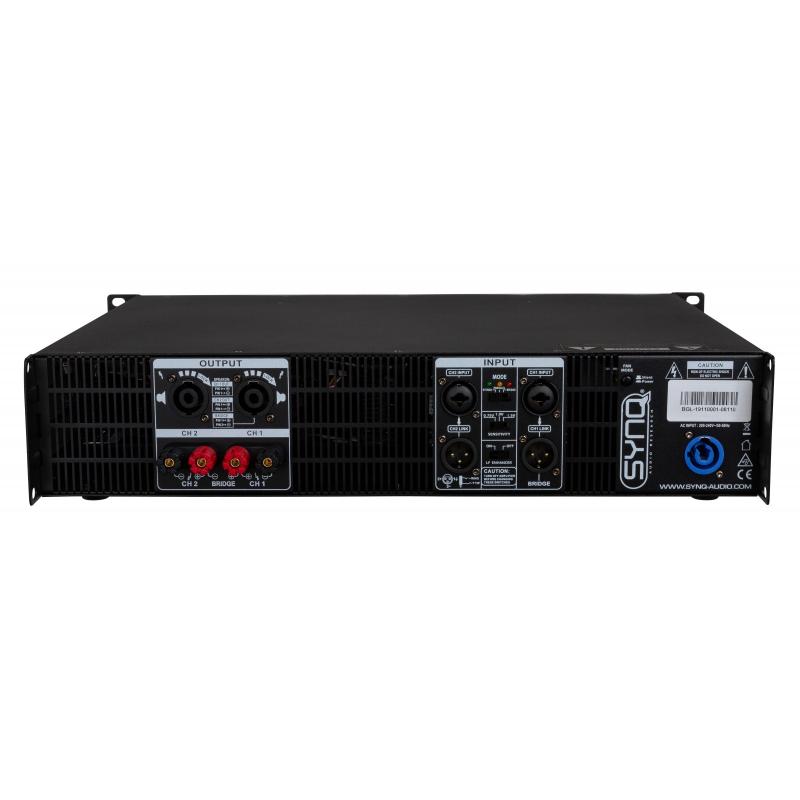

• Balanced in/outputs on XLR / COMBO
• 2 Speakon® compatible connectors (left, right & bridge outputs).

General : Application     DJ & Club, Stage & Rental
General : Series     SE
General : Dimensions (cm)     48.2 x 8.8 x 36.5
General : Weight (kg)     10.06
General : Color     black
General : Powerinput     AC 230V, 50Hz
General : Energy Label     No
General : Display     LCD
General : Fixation     19" rack mountable
General : RU     2U
General : IP rating     indoor
Audio : amplifier class     TD
Audio : min. frequency (Hz)     20
Audio : max. frequency (Hz)     20000
Audio : S/N ratio (> dB)     100
Audio : damping factor (>...)     800
Audio : max. output channels     2
Audio : Wrms 2Ω stereo, per channel     2000
Audio : Wrms 4Ω stereo, per channel     1500
Audio : Wrms 8Ω stereo, per channel     1000
Audio : Wrms 4Ω bridge     4000
Audio : Wrms 8Ω bridge     3000
Audio : functions     bridge mode, limiter
Connections : input     3 pin XLR, jack, PowerCon®
Connections : output     3 pin XLR, speakon
