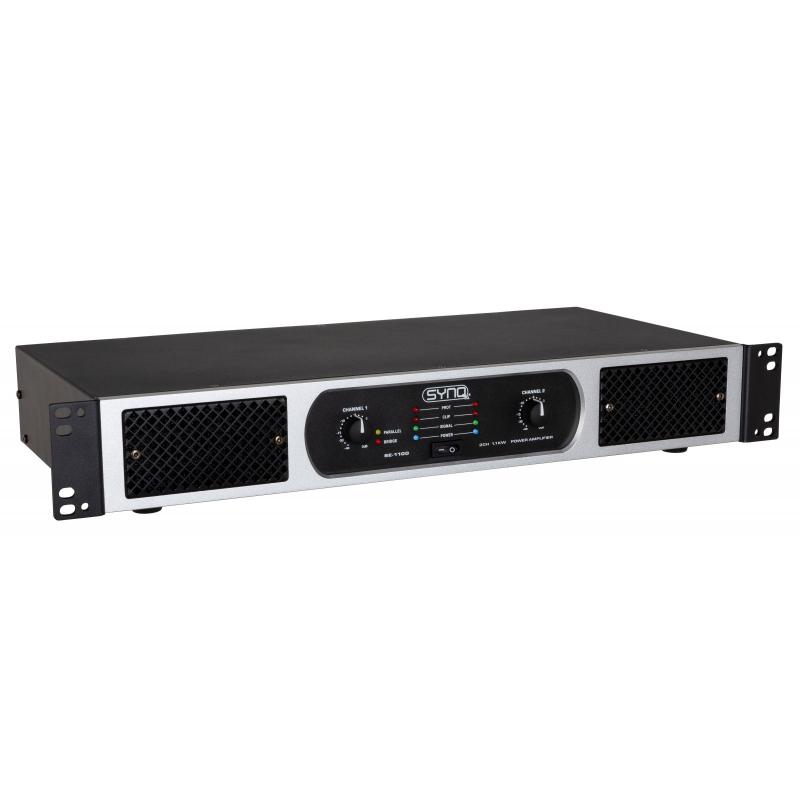

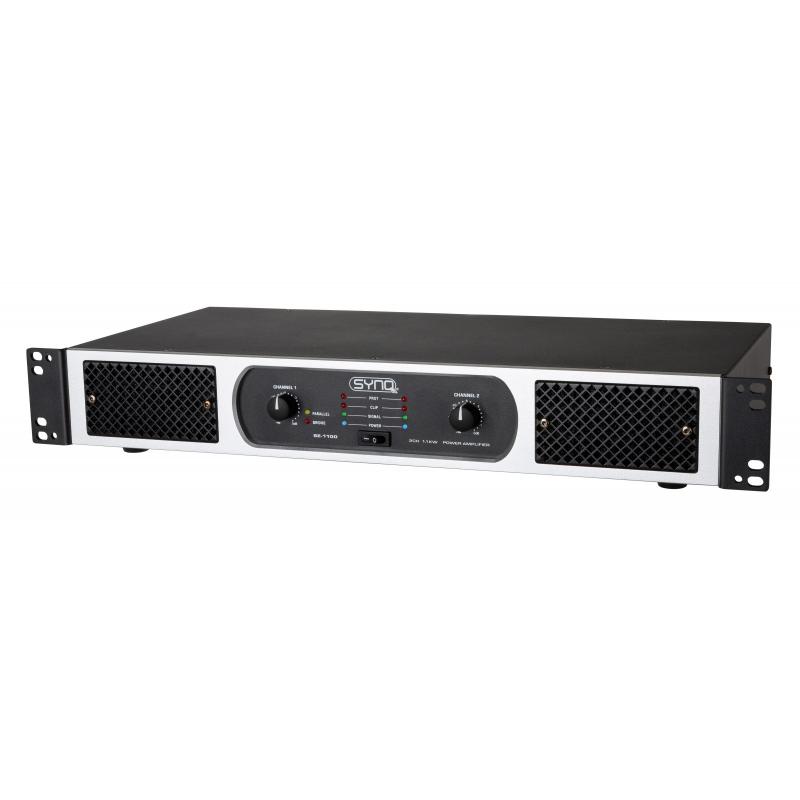

SE-1100

2 x 550W RMS klass D lättviktsteg, 3,85 kg

    This SE-1100 power amplifier is unprecedented in terms of price / performance.
    The sophisticated design of this lightweight CLASS-D amplifier ensures excellent and powerful low-frequency reproduction combined with crystal clear and delicately balanced high frequencies.
    Thanks to the big power reserve, excellent limiters and protections it can be used in all kinds of different applications such as discotheques, clubs, mobile audio, PA, rental, theater, …
    The extremely high efficiency, reduced power waste and very low heat dissipation are the main advantages of this compact amplifier!
    Incredible space savings for mobile applications: depth of the 1.5U enclosure is only 21cm!
    Incredibly low weight, only 3,85kg!
    Power output, stereo:
        2x 300Wrms @ 8 Ω
        2x 550Wrms @ 4 Ω
    Power output, bridge:
        1x 1100Wrms @ 8 Ω
    All the protections you can think of for professional use:
        Inaudible signal + current limiter
        Overload protection
        Short circuit current protection
        DC protection
        Thermal protection
        AC / VHF protection
        Soft start
        …
    3 different working modes: stereo, bridge mode, mono mode (inputs linked)
    Input sensitivity: 0,7 V / 1 V / 1,4 V

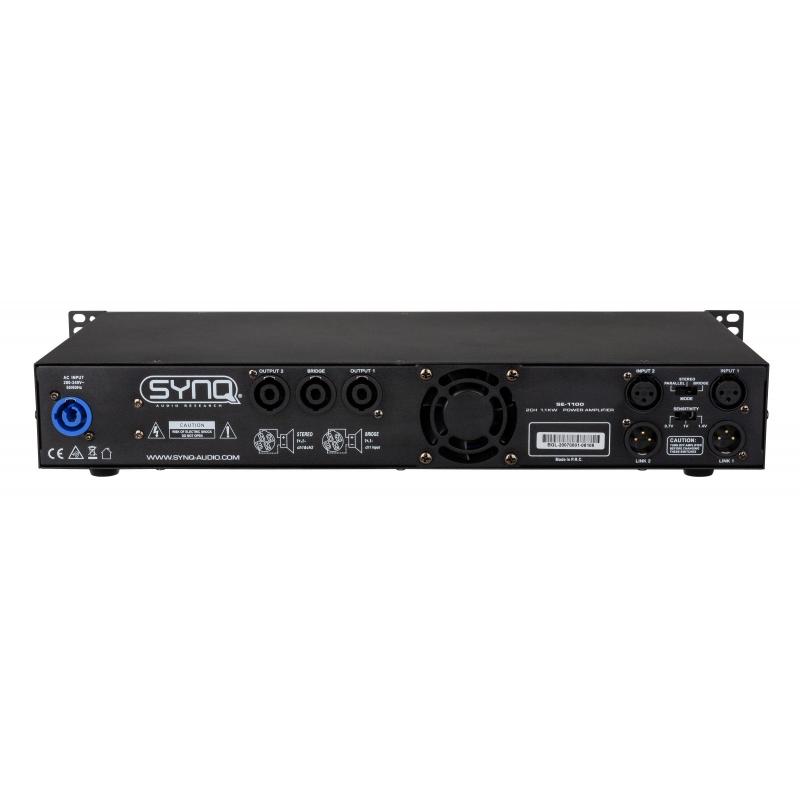

    Balanced in/outputs on XLR
    2 Speakon® compatible connectors (left and right outputs)
    1 separate output for bridge mode

General : Application     DJ & Club, Stage & Rental
General : Series     SE
General : Dimensions (cm)     48.2 x 6.6 x 21.5
General : Weight (kg)     3.85
General : Color     black
General : Powerinput     AC 230V, 50Hz
General : Energy Label     No
General : Power consumption W     1200
General : Display     No
General : Fixation     19" rack mountable
General : RU     1.5U
General : IP rating     indoor
Audio : amplifier class     D
Audio : min. frequency (Hz)     20
Audio : max. frequency (Hz)     20000
Audio : S/N ratio (> dB)     103
Audio : damping factor (>...)     400
Audio : max. output channels     2
Audio : Wrms 4Ω stereo, per channel     550
Audio : Wrms 8Ω stereo, per channel     300
Audio : Wrms 8Ω bridge     1100
Audio : functions     bridge mode, limiter
Connections : input     3 pin XLR, PowerCon®
Connections : output     3 pin XLR, speakon
Brand     SYNQ
