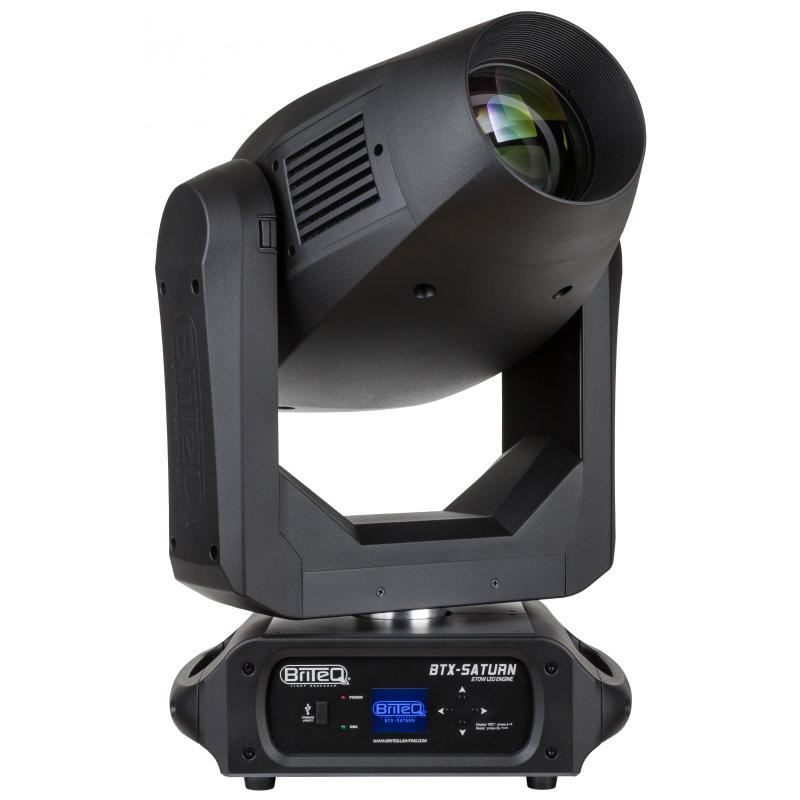

BTX-Saturn
Briteq
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
BTX-Saturn
Briteq
BRITEQ PRO 270W LED-moving head med 8-45° zoom, CMY-färgmix, CTO, CTB, UV, Iris, Frost och gobo morphing!
- High efficiency moving head projector based on a powerful 270W LED engine!
- Wide range electronic zoom, from 8° to 45° + motorized focus.
- Silence mode for theater applications.
- Fast 540° pan and 270° tilt movements.
- 16bit resolution pan/tilt resolution with position correction and pan/tilt speed channel.
- CMY color mixing to create lots of saturated and pastel colors.
- 9 extra fixed colors including 2 CTO, one CTB and UV.
- 7 replaceable rotating gobos with fine indexing.
- 9 fixed static gobos for gobo morphing.
- Rotating 3 facets prism.
- Iris module for dynamic effect.
- Variable frost filter for perfect wash effect.
- Aperture diaphragm for excellent logo projection.
- Opening/closing pulse, ramp and random effects on zoom, iris and frost channels.
- Four dimmer curves: linear, square, inverse square, S-curve, fast and slow dimming mode.
- Accurate strobe with built in random, pulse and burst effects.
- 3 focus compensate distances to always keep the focus according to the zoom opening.
- Uses 25 DMX channels + RDM-functionality for easy remote setup.
- Easy USB firmware update to keep the moving head up-to-date at all times.
- The matrix LCD-display assures easy navigation in the different setup menus
- 3 & 5pin DMX in/outputs + Neutrik PowerCON TRUE1 in/outputs for easy daisy chaining.
- Equipped with omega brackets for fast installation.
| General : Application | Stage & Rental, Theatre |
|---|---|
| General : Dimensions (cm) | see drawing |
| General : Weight (kg) | 21.5 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 392 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | included omega bracket |
| General : IP rating | indoor |
| Control : manual | No |
| Control : Master/Slave | No |
| Control : SMART-DMX | No |
| Control : Standalone | no |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : maximum DMX channels | 25 |
| Light : lamp socket | none |
| Light : Lux | 31680 |
| Light : lumen | 18750 |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3200 |
| Light : max. color temperature (K) | 8000 |
| Light : colors | other |
| Light : mix colors | Yes |
| Light : fixed gobos | 9 |
| Light : rotating gobos | 7 |
| Light : focus | Motorized |
| Light : zoom | Motorized |
| Light : iris | Yes |
| Light : prism ( # facets + rotating y/n ) | 3-facet, rotating |
| Light : frost filter | Yes |
| Light : min. beam angle (°) | 8 |
| Light : max. beam angle (°) | 45 |
| Light : min. refresh rate (kHz) | No |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, 5 pin XLR, TRUE1 powerCON, usb, rdm |
| Connections : output | 3 pin XLR, 5 pin XLR, TRUE1 powerCON, rdm |
