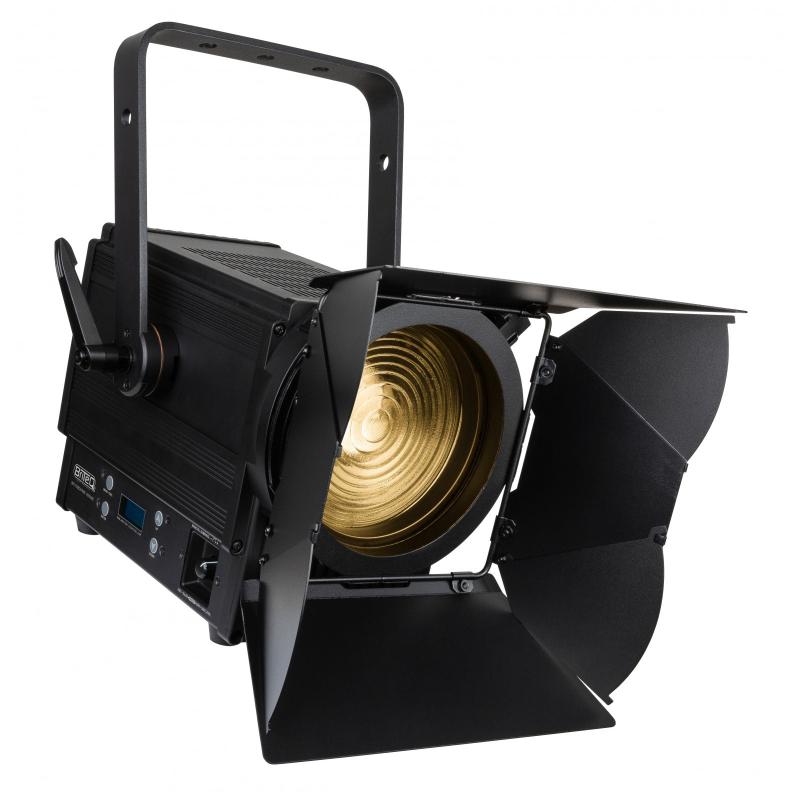

BT-THEATRE 100MZ

Kraftfull LED Fresnel på 100W med exceptionell ljusåtergivning

• Powerful 100W LED theater Fresnel with CCT= 3000K
• The light output can be easily compared to that of traditional 1kW halogen theatre projectors!
• Exceptional photometric / price performance: CRI / Ra >96, TLCI >97,  CQS >94,  Rf >92,  Rg >97 !
• Manual beam angle adjustment: 15° ~ 45° (field angle: 22° ~ 60°)
• Color frame for use of color filters and eight-leaf barndoor included.
• No more heavy and expensive dimmer packs needed!
• Very silent operation: temperature controlled, low noise cooling fan.
• LCD-display to navigate easily through the setup menu!
• Manual or DMX-controlled: 4 different channel modes (8bit & 16bit dimming) for maximum flexibility.
• Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® code: B04645)
• Flicker free TV-recordings thanks to 1.2kHz LED refresh rate!
• Manual dimming & zoom/focus control: easy projector alignment on the stage + use on exhibition booths.
• Selectable lamp behavior: halogen lamp (slow) or led (fast).
• Four dimmer curves: linear, square, inverse square, S-curve.
• In case of DMX failure, you can choose between manual, blackout and freeze mode.
• RDM-functionality for easy remote setup & monitoring: DMX addressing, channel mode, temperature, …
• Lock function to avoid unwanted altering of the settings.
• Default factory settings + user settings can be saved/loaded.

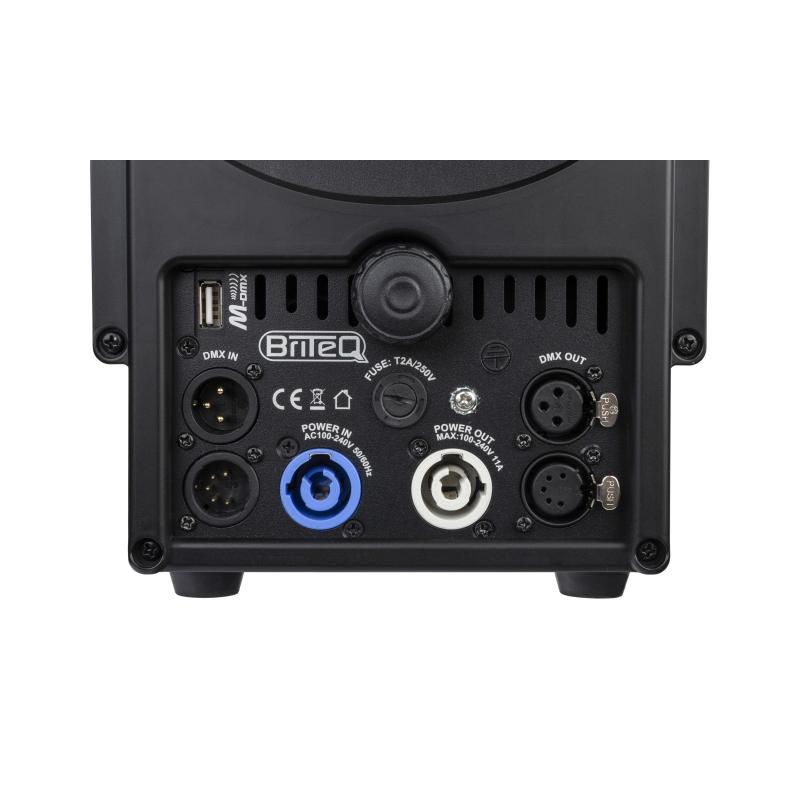

• 3 & 5pin DMX in/outputs + ProLock in/outputs for easy daisy chaining.

General : Application     Theatre

General : Series     N/A

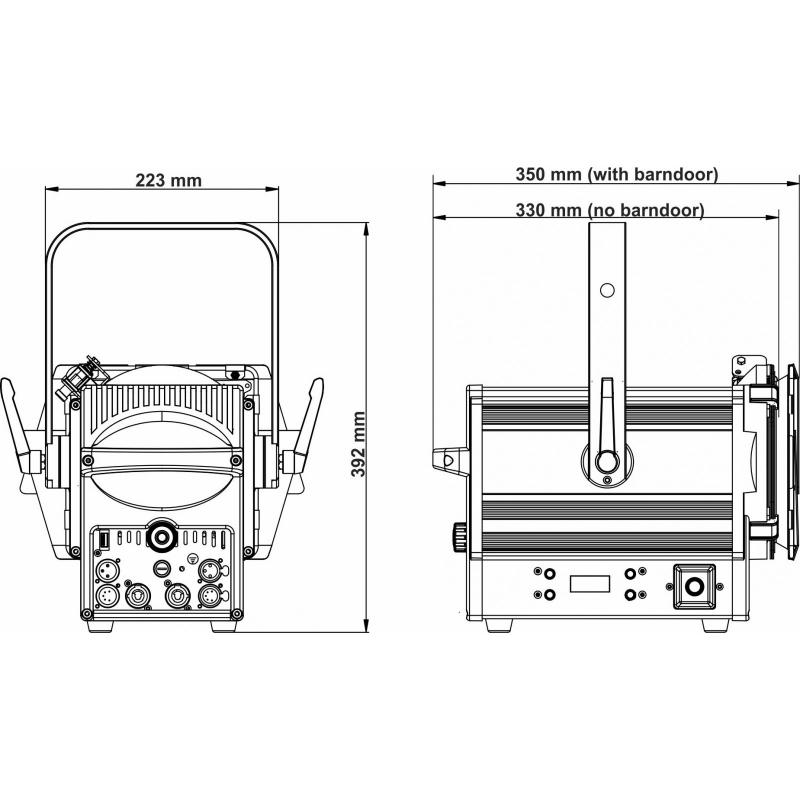

General : Dimensions (cm)     See drawing
General : Weight (kg)     7.2
General : Powerinput     AC 100 - 240V, 50/60Hz
General : Energy Label     No
General : Power consumption W     105
General : Color     black
General : Display     LCD
General : Fixation     M12
General : IP rating     indoor
Control : Modes     standalone, manual
Control : manual     Yes
Control : Master/Slave     No
Control : SMART-DMX     No
Control : Standalone     fixed
Control : programmable     No
Control : upgradable software     Yes
Control : maximum DMX channels     4
Light : lamp socket     none

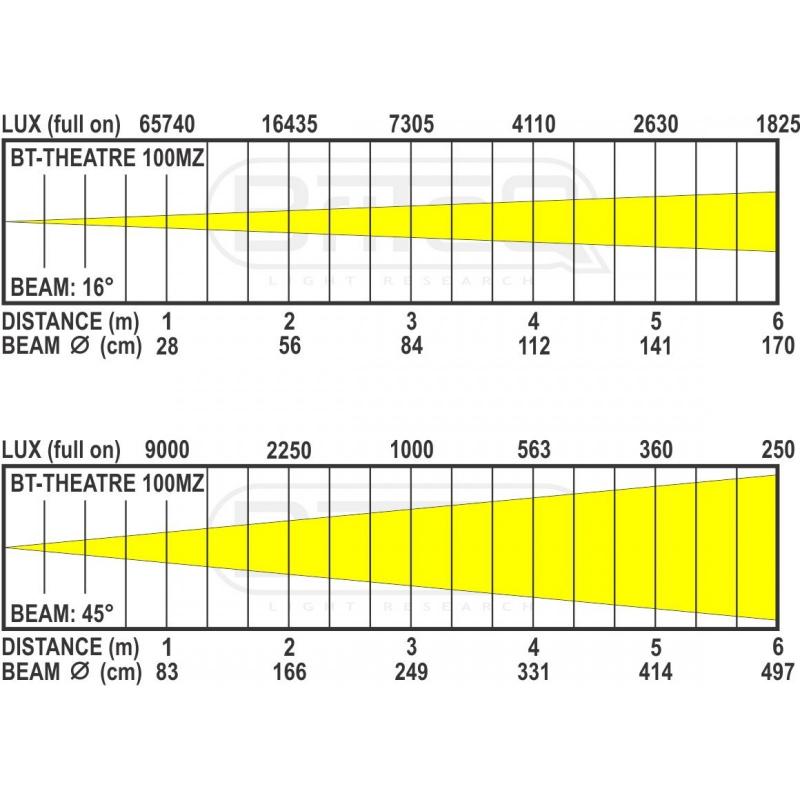

Light : Lux     2630 (@ 5m beam 16°)
Light : lamp     COB
Light : min. color temperature (K)     3000
Light : max. color temperature (K)     3000
Light : CRI     95
Light : colors     Warm white
Light : mix colors     No
Light : functions     manual focus, manual zoom
Light : min. beam angle (°)     15
Light : max. beam angle (°)     45
Light : min. refresh rate (kHz)     1.2
Light : max. refresh rate (kHz)     1.2
Connections : input     3 pin XLR, 5 pin XLR, PowerCon®, usb
Connections : output     3 pin XLR, 5 pin XLR, PowerCon®, usb
